1. Product Features
|
Main function |
² Android 9.0 Embedded system； ² Support 20-point touch writing experience to meet the needs of different users； ² Android whiteboard smart pen writing, with its own pen tip, restore writing handwriting； ² Scan the code of the meeting to easily take away the meeting minutes, making data sharing more convenient； ² Support continuous annotation under any channel； ² Support custom replacement of static wallpaper； ² Supports timed sleep and standby of the device, saving energy and reducing consumption； ² Support custom no signal standby time； ² Support USB device full channel follow； ² Support two-finger tap to turn off the screen to wake up； ² Support a network cable Android and built-in computer Internet function； ² Support sidebar shortcut keys to automatically hide without operation； ² Intelligently identify the signal source, and automatically jump into the port channel when the external signal is connected； Support three major system theme style switching, namely conference theme, education theme, classic theme； ² The floating icon supports 6 shortcut function menus for back, whiteboard, OPS computer, annotation, taskbar, and Android homepage； Supports clicking on the left and right sidebars to expand the function menu under any channel, which are return to the previous page, return to the home page, system settings, file management, signal source list (switchable channels), control panel (open shortcut functions and applications, adjust sound brightness, etc.), power options (shut down, close OPS, hibernate and restart) ), the sidebar will be automatically hidden after 10S without any operation in the expanded state. |
|
Other functions |
² Front expansion port: 3 channels USB3.0 full channel PC/Android sharing interface, TOUCH-USB, 1 channel, HDMI interface 1 channel, which is convenient for users to expand and use； ² The front 8 functional physical buttons: POWER, Input, Menu, V+, V-, ECO, Home, PC (one-key switch to the built-in computer), easy to understand and easy to operate； ² The front speaker output port design prevents the sound effect from being noisy and distorted due to built-in； ² Adopting a high-performance infrared touch frame solution with anti-blocking and anti-stain functions, touch reception will not affect normal writing even after single-point or multi-point infrared emission points are blocked； ² Support wired LAN, wireless 2.4G WIFI network connection； ² Can be set to show and hide the floating icon, the floating icon can be triggered by five fingers to follow and drag to any position in the display area, the sidebar icon can be moved up and down after a long press； |
3、Product parameter
|
Body material |
Aluminum alloy frame, black oxide |
|
Front frame glass |
Physically tempered Grade 7 explosion-proof glass, AG anti-glare treatment; |
|

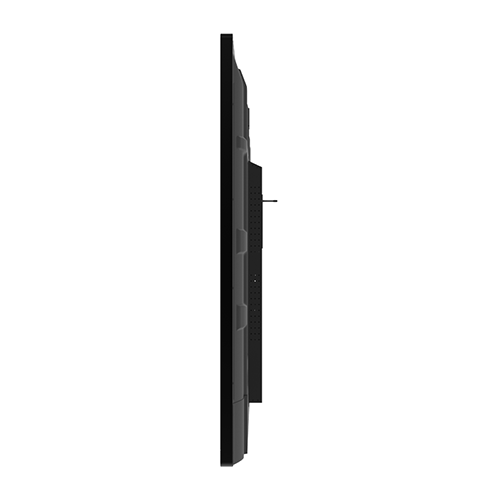

Overall size（mm） |
2225（L）*99.9（W）*1330.9（H） Including OPS thickness 107 mm |
|
Package size（mm） |
2410（L）*350（W）*1660（H）（Gift box） |
|
Product weight |
98KG(N.W.)、143KG（G.W.） |
|
Total power |
≤400W（Does not contain OPS, supports OPS power ≤100W） |
|
Standby power |
≤0.5W |
|
Sound speaker |
Stereo sound, 2*15W high and low sound |
|
Input voltage |
100-240V~ 50/60Hz |
|
Solution |
MSD848（8386） |
|
CPU |
Dual-core A73 and dual-core A53，1.5GHz |
|
GPU |
Quad-core Mali G51 |
|
RAM |
3G |
|
ROM |
32GB |
|
System version |
Android 8.0 |
|

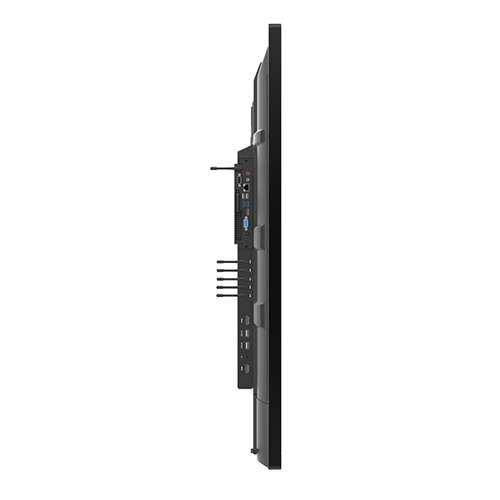

Input ports |
VGA port：*1 |
|
VGA Audio port：*1 |
|
|
AV IN port：*1 |
|
|
HDMI port：*2 |
|
|
MIC IN port：*1 |
|
|
Output ports |
Earphone port：*1 |
|
SPDIF port: *1 |
|
|
Other ports |
RJ45/LAN port：*1 |
|
Touch USB port：*1 |
|
|
RS232 port：*1 |
|
|
USB2.0: *1 |
|
|
TF Card: *1 |
|
|
Front port |
HDMI
|
