Kinstone 65 inch Touch IFP Education UHD AIO Interactive Portable Whiteboard

Item No.: KS-IFP065HB
Business oxidation black appearance;
Slim ultra narrow edge design; Resolution 3840 * 2160 UHD
High-precision infrared touch - 20-point touch writing;
Intelligent pen writing with smooth Android 9.0 System
Description SPECS
Description



01

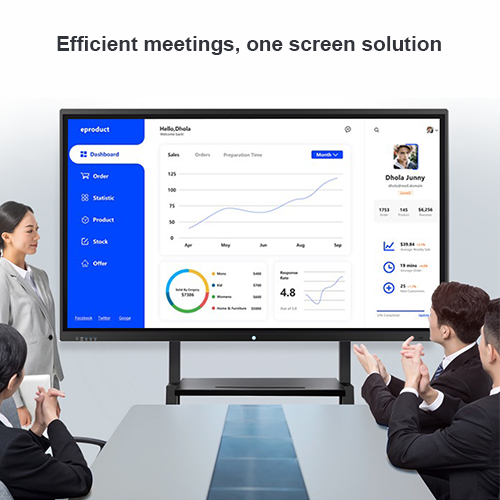

Smart Meeting
Electronic Whiteboard
UHD display that provides visibility from all angles;
  1. Single-point touch,
  2. Multi-point move,
  3. Dual-finger zoom,
  4. Topics Switch
  5. Writing styles optional, Thick and fine writing
______________

02
Smart Writing

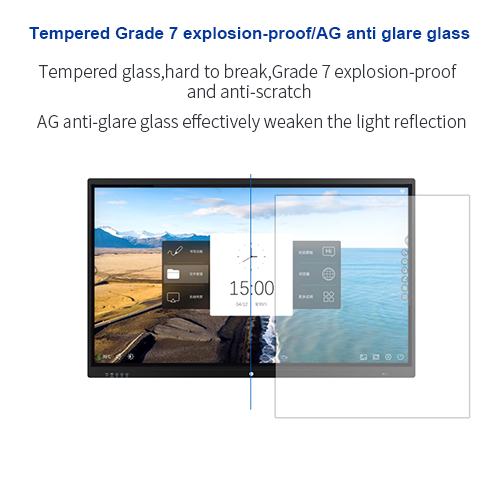

Tempered Grade 7 explosion-proof
AG anti-glare glass effectively weaken the light reflection

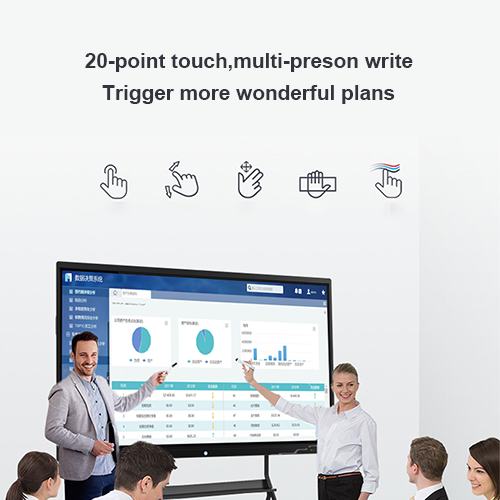

20-point touch,multi-preson write at the same time.
Express your natural thoughts immediately,easy for teamwork and trigger more wonderful plans;

______________

03

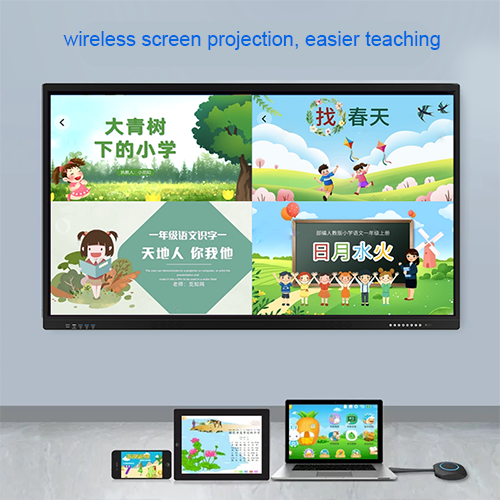

No Limit For Sharing

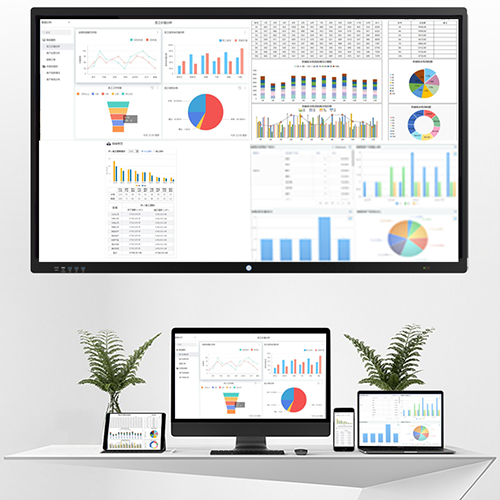

Wireless Screen Projection,
Fulfil sharing among multi-devices.
Wireless screen transmission, multi screen interaction, one button screen projection, two-way control.

______________

  • 04
    Smooth Writing
    Smart Whiteboard
    • Sensitive layout Smooth stroke
    • Smart pen writing, with its own tip, restore notes
    • High sensitive layout, free writing, delicate and smooth strokes
    • Smart and smooth writing,more efficient conference

      ______________

05

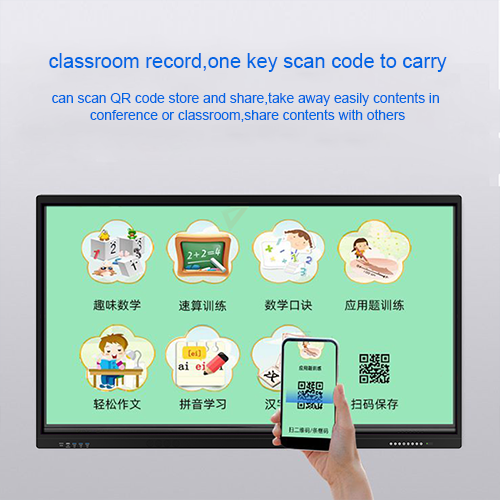

Take meeting minutes easily

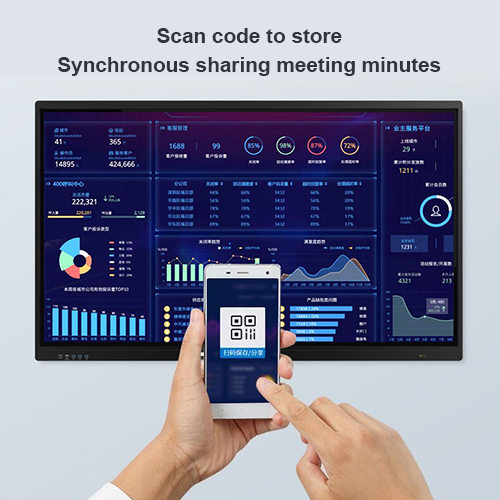

  • Scan code to store
  • Synchronous sharing meeting minutes
  • Scan code,no need write,take meeting minutes easily,save time and effort
  • Send email make sharing more convenient
  • Make conference more convenient and efficient
______________







































6
 Hardware Software Support Customization

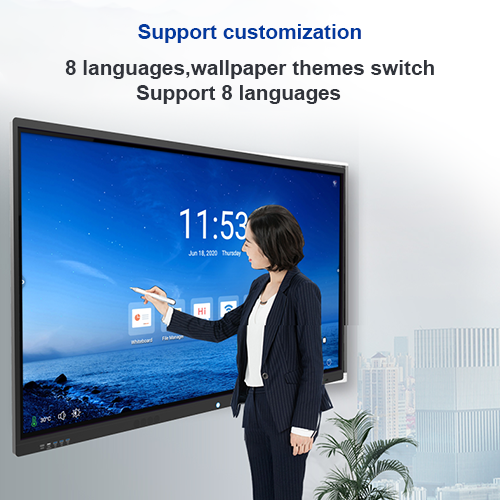

Support change static or dynamic wallpapers,  LOGO, animation themes switch
Support sleep with screensaver,save energy
The hover icon supports users to customize and add 8 shortcut function application menus
Support cable Ethernet with Android and Built-in PC









SPECS

Product Name 65’’ Touch IFP Education AIO Machine

Product Model  KS-IFP065HB

Main FeatureBusiness oxidation black appearance, slim ultra narrow edge design, high-precision infrared touch, intelligent pen writing, smooth Android 9.0 System

1.       Product Features

Main function

²  Android 9.0 Embedded system

²  Support 20-point touch writing experience to meet the needs of different users

²  Android whiteboard smart pen writing, with its own pen tip, restore writing handwriting

²  Scan the code of the meeting to easily take away the meeting minutes, making data sharing more convenient

²  Support continuous annotation under any channel

²  Support custom replacement of static wallpaper

²  Supports timed sleep and standby of the device, saving energy and reducing consumption

²  Support custom no signal standby time

²  Support USB device full channel follow

²  Support two-finger tap to turn off the screen to wake up

²  Support a network cable Android and built-in computer Internet function

²  Support sidebar shortcut keys to automatically hide without operation

²  Intelligently identify the signal source, and automatically jump into the port channel when the external signal is connected

Support three major system theme style switching, namely conference theme, education theme, classic theme

²  The floating icon supports 6 shortcut function menus for back, whiteboard, OPS computer, annotation, taskbar, and Android homepage

Supports clicking on the left and right sidebars to expand the function menu under any channel, which are return to the previous page, return to the home page, system settings, file management, signal source list (switchable channels), control panel (open shortcut functions and applications, adjust sound brightness, etc.), power options (shut down, close OPS, hibernate and restart) ), the sidebar will be automatically hidden after 10S without any operation in the expanded state.

Other functions

²  Front expansion port: 3 channels USB3.0 full channel PC/Android sharing interface, TOUCH-USB, 1 channel, HDMI interface 1 channel, which is convenient for users to expand and use

²  The front 8 functional physical buttons: POWER, Input, Menu, V+, V-, ECO, Home, PC (one-key switch to the built-in computer), easy to understand and easy to operate

²  The front speaker output port design prevents the sound effect from being noisy and distorted due to built-in

²  Adopting a high-performance infrared touch frame solution with anti-blocking and anti-stain functions, touch reception will not affect normal writing even after single-point or multi-point infrared emission points are blocked

²  Support wired LAN, wireless 2.4G WIFI network connection

²  Can be set to show and hide the floating icon, the floating icon can be triggered by five fingers to follow and drag to any position in the display area, the sidebar icon can be moved up and down after a long press

2、Overall appearance





3.Product parameter





Body material

Aluminum alloy frame, black oxide

Front frame glass

Physically tempered Grade 7 explosion-proof glass

Overall sizemm

1485.74L*90.5W*909.9H

Including OPS thickness 97.7

Package sizemm

1640L*215W*1058H)(Lid & bottom box

Product weight

39KG(Net)49KGGross

Total power

≤220Wwithout OPSsupports OPS power ≤100W

Standby power

≤0.5W

Sound speaker

Stereo sound, 2*15W high and low sound

Input voltage

110-230V~   50/60Hz

4System parameters LG

Solution

Hi3751V563 563

CPU

Quad-core A55 Quad core 1.5GHz

GPU

Mali-G52

RAM

1G (Optional)

ROM storage

8GB (Optional)

System version

Android 9.0
